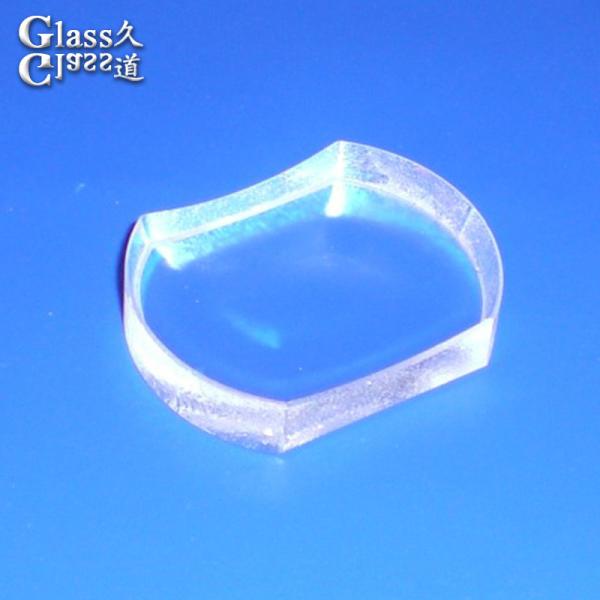

    Customization Optical Glass Plano Concave Lens Bi Concave Lens with AR Coating

    Ask Lasest Price
    Brand Name : LONGWAY
    Model Number : Concave lens
    Price : negotiation
    Certification : ISO9001
    Payment Terms : D/P,T/T,Western Union
    Supply Ability : 50000 pcs per month
    • Product Details
    • Company Profile

    Customization Optical Glass Plano Concave Lens Bi Concave Lens with AR Coating


    Optical Glass Plano Concave Lens Bi Concave Lens With Ar Coating


    Property: High-quality optical glass ensures exceptional clarity and durability.

    Superior optical quality with minimal distortion and aberrations.

    Function:

    • Concave lens: allows for precise measurement and inspection.
    • AR Coating: Advanced anti-reflective coating reduces stray light by up to 99%.

    Usage: Ideal for applications where high-quality optics are required, such as:

    • Industrial inspection: Precise measurement and inspection of surfaces in manufacturing environments
    • Scientific research: Cutting-edge scientific endeavors with high-performance optical components
    • Optical instruments: High-end telescopes, microscopes, and other optical instruments.
    MaterialOptical Glass, Fused Silica, quartz
    Diameter Tolerance+0/-0.15 mm
    Thickness Tolerance+/-0.15 mm
    Cler Apertureover 90%
    Surface Quality80/50~10/5 scratch and dig
    Transmissionabove 92%
    Chamfer0.1-0.5 mm x 45 degree
    Focal Length Tolerance+/-1.5%
    Back Focal Length Tolerance+/-1.5%
    Coatingavailable
    Usageoptical system, photographic sysem, e.g. laser, camera, monitor, projector etc.
