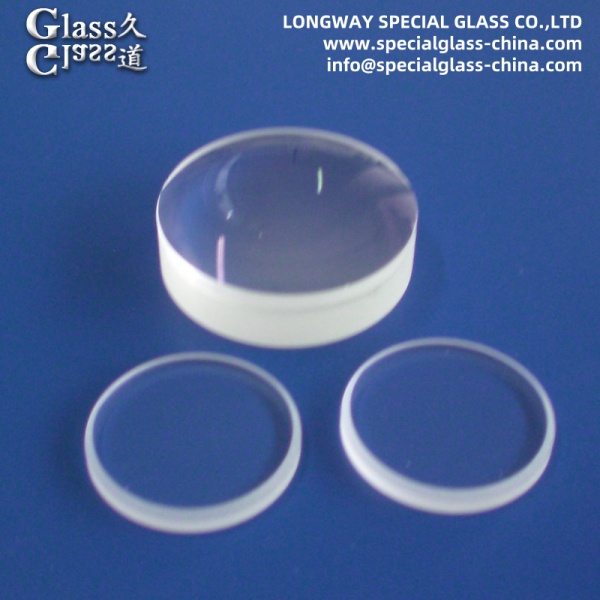

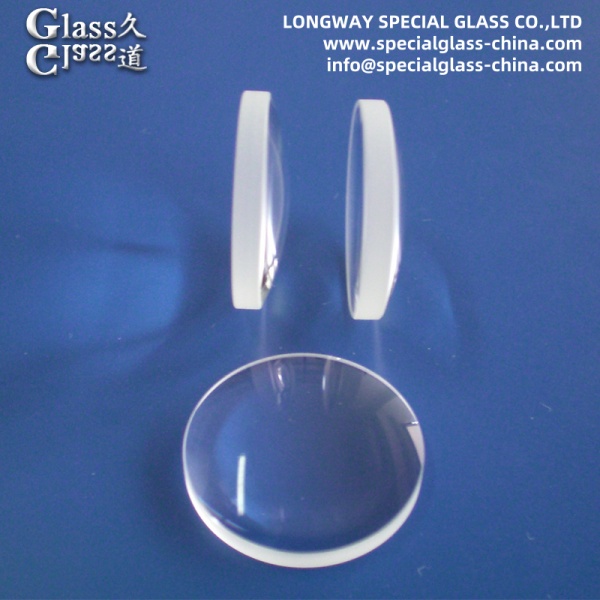

    BK7 Optical Glass Cemented Achromatic Convex Lens For Optical System

    Ask Lasest Price
    Brand Name : LONGWAY
    Model Number : LW04011
    Supply Ability : 30000 Piece/Pieces per Month
    Price : negociation
    Certification : ISO9001
    • Product Details
    • Company Profile

    BK7 Optical Glass Cemented Achromatic Convex Lens For Optical System

    BK7 Optical Glass Cemented Achromatic Doublet Convex Lens For Optical System

    In the realm of optical systems, BK7 optical glass cemented achromatic doublet convex lenses have proven to be a vital component. These lenses are designed to provide high-quality imaging and accurate results.

    Raw Material:

    1. High-Quality BK7 Glass: The raw material used for these lenses is high-quality BK7 glass that ensures minimal aberrations and distortion.
    2. Cemented Achromatic Design: A special cementing technique is employed to create an achromatic doublet design, which minimizes chromatic aberration.

    Quality:

    1. High Optical Quality: These lenses are manufactured with high optical quality standards in mind, ensuring minimal defects and imperfections.
    2. Achromatic Performance: The achromatic design provides accurate color rendition and minimizes chromatic aberrations.

    Function:

    1. Light Focusing: The convex lens design focuses light onto a single point, enabling precise imaging.
    2. Image Formation: It forms images with high accuracy and resolution.
    3. Minimized Distortion: The achromatic design reduces distortion and ensures minimal aberrations.

    Applications:

    1. Optical Systems: These lenses are used in various optical systems, including microscopes, telescopes, and spectrographs.
    2. Scientific Research: They are employed in scientific research applications, such as interferometry and microscopy.
    3. Industrial Inspection: The achromatic design makes them ideal for industrial inspection systems.

    Benefits:

    1. High-Quality Imaging: BK7 optical glass cemented achromatic doublet convex lenses provide high-quality imaging and accurate results.
    2. Minimized Distortion: They minimize distortion and ensure minimal aberrations.
    3. Cost-Effective: By reducing the need for post-processing, these lenses can help save time and resources.
    Name
    optical glass
    Material
    Bk-7,Pyrex,Fused Silica,Sapphire,quartz
    Diameter Tolerance
    +0/-0.2 mm
    Thickness Tolerance
    +/-0.2 mm
    Cler Aperture
    over 90%
    Surface Quality
    80/50~10/5 scratch and dig
    Transmission
    above 92%
    Chamfer
    0.1-0.3 mm x 45 degree
    Focal Length Tolerance
    +/-2%
    Back Focal Length Tolerance
    +/-2%
    Coating
    available
    Usage
    opticl system, photographic sysem, Lighting system,Electronic apparatuse.g.laser,camera,monitor,projector,magnifier,telescope,
    polarizer,
    electronic instrument,led etc.
