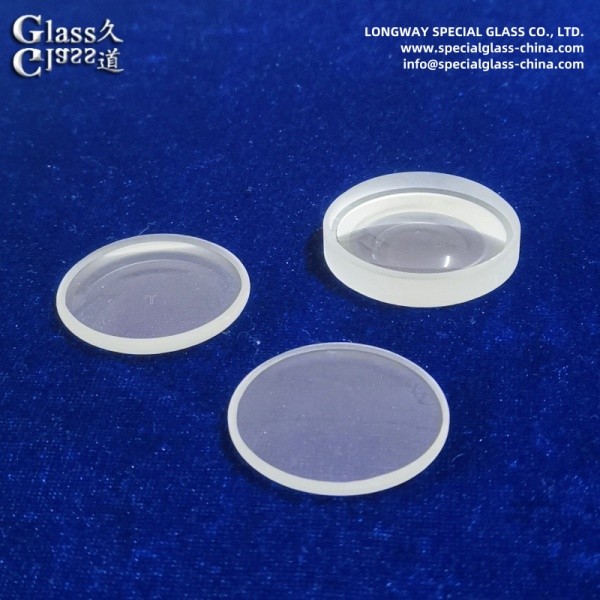

    N-Bk7 Glass Optical Bi Concave Lens For Laser Beam Expansion & Collimation

    Ask Lasest Price
    Brand Name : LONGWAY
    Model Number : LW1609201453
    Supply Ability : 80000 Pieces per Month
    Price : $1.00/pieces >=1000 pieces
    Certification : ISO9001
    Payment Terms : T/T, Western Union
    • Product Details
    • Company Profile

    N-Bk7 Glass Optical Bi Concave Lens For Laser Beam Expansion & Collimation


    N-Bk7 Glass Optical Bi Concave Lens For Laser Beam Expansion & Collimation


    Material‌:

    • ‌N-Bk7 Glass‌: This lens is crafted from N-Bk7 glass, a high-quality optical glass known for its excellent transparency, low absorption, and good chemical resistance. N-Bk7 glass is a type of borosilicate glass that offers superior optical performance in the visible and near-infrared spectrum‌1.

    ‌Properties‌:

    • ‌High Transparency‌: The lens exhibits high transparency, allowing for efficient transmission of light with minimal loss.
    • ‌Low Absorption‌: N-Bk7 glass has low absorption in the visible and near-infrared range, ensuring that the lens does not heat up significantly when used with high-power lasers.
    • ‌Good Chemical Resistance‌: The lens is resistant to a wide range of chemicals, making it suitable for use in harsh environments.
    • ‌Excellent Surface Finish‌: The lens has a smooth, polished surface that minimizes scattering and reflection, ensuring optimal light transmission‌.

    ‌Functions‌:

    • ‌Laser Beam Expansion‌: The bi-concave design of the lens allows it to expand a laser beam uniformly, increasing the beam's diameter while maintaining its coherence and intensity.
    • ‌Collimation‌: The lens can also be used to collimate a laser beam, converting a diverging beam into a parallel beam, making it suitable for various optical applications.
    • ‌Focal Length Adjustment‌: By adjusting the distance between the lens and the laser source, the focal length of the beam can be fine-tuned to meet specific requirements‌.

    ‌Applications‌:

    • ‌Laser Systems‌: The lens is ideal for use in laser systems, such as laser cutters, engravers, and markers, where precise beam control and expansion are crucial.
    • ‌Optical Instrumentation‌: It can be used in optical instruments, such as spectrometers and interferometers, for precise measurement and alignment.
    • ‌Medical Devices‌: The lens is suitable for use in medical devices, such as laser treatment systems, where precise beam control is essential for safe and effective treatment.
    • ‌Research & Development‌: The lens is also valuable in research and development applications, where it can be used to study the properties and behavior of laser beams in various conditions‌.

    In summary, the N-Bk7 Glass Optical Bi-Concave Lens is a versatile and essential component for laser beam expansion and collimation. Its high-quality material, excellent properties, and precise functions make it an ideal choice for a wide range of applications in laser systems, optical instrumentation, medical devices, and research & development.


    ItemOptical glass bi concave lens
    MaterialOptical glass, Qurartz glass, Pyrex, borosilicate glass, Float glass
    Diameter Tolerance+0/-0.15 mm
    Thickness Tolerance+/-0.15mm
    Processedby grinding, polishing
    Surface Quality80/50,60/40,40/20
    Material Qualityno scratches and air bubble
    Transmissionabove 90%
    Chamfer0.1-0.5 mm x 45°
    Surface CoatingAvailable

    N-Bk7 Glass Optical Bi Concave Lens For Laser Beam Expansion & Collimation


    N-Bk7 Glass Optical Bi Concave Lens For Laser Beam Expansion & Collimation


    N-Bk7 Glass Optical Bi Concave Lens For Laser Beam Expansion & Collimation


    Quality N-Bk7 Glass Optical Bi Concave Lens For Laser Beam Expansion & Collimation for sale
