| Brand Name : | LONGWAY |
| Model Number : | LW01932 |
| Certification : | ISO9001 |
| Price : | NEGOTIATION |
| Payment Terms : | D/P,T/T,Western Union |
| Supply Ability : | 100000 Pieces per Month |

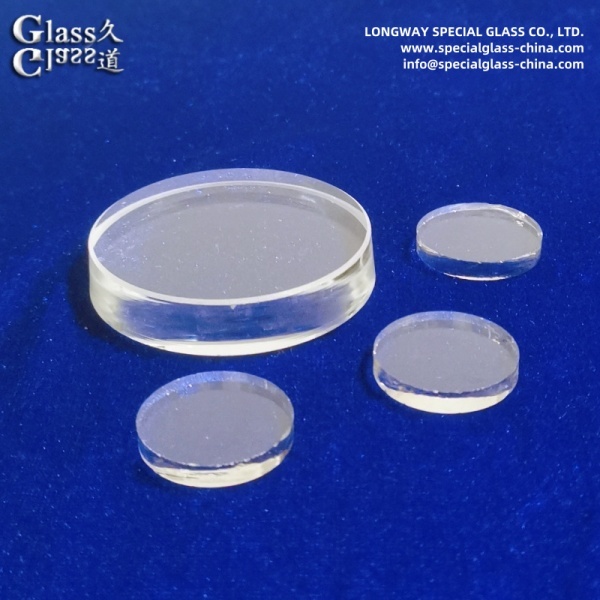

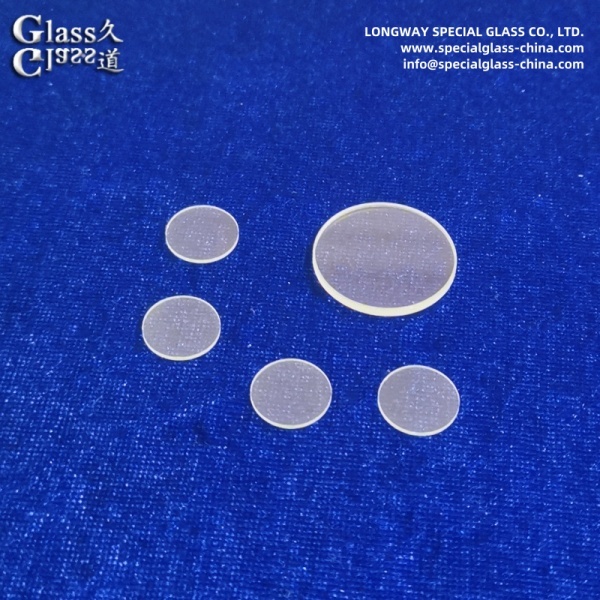

JGS1 JGS2 UV Fused Silica Optical Window for High-Power Laser Applications
Fused Silica (Quartz Glass)
The optical window, designated as JGS1 and JGS2, is crafted from fused silica, also known as quartz glass. Fused silica is a high-purity form of silicon dioxide (SiO2) that possesses exceptional optical, thermal, and mechanical properties. This material is renowned for its transparency across a broad spectral range, making it ideal for applications requiring precise optical performance.
The primary function of the JGS1 and JGS2 UV fused silica optical windows is to transmit high-power laser beams with minimal loss and distortion. These windows serve as critical components in laser systems, enabling efficient energy transfer and precise beam control. They are designed to withstand the intense optical and thermal loads associated with high-power laser applications, ensuring reliable performance and long-term durability.
Due to their excellent UV transmittance, JGS1 and JGS2 optical windows are particularly suited for applications involving UV lasers, such as lithography, microfabrication, and materials processing.
| Item | Optical Window, Glass disc, Sight glass |
| Material | Optical glass, Qurartz glass, Pyrex, borosilicate glass, Float glass, borofloat |
| Diameter Tolerance | +0/-0.2 mm |
| Thickness Tolerance | +/-0.2 mm |
| Processed | By Cutting,Grinding,Tempering, Polishing |
| Working temperature | Resisting high temperature shock |
| Surface Quality | 80/50,60/40,40/20 |
| Material Quality | No scratches and air bubble |
| Transmission | >92% for visible light |
| Chamfer | 0.1-0.3 mm x 45 degree |
| Surface Coating | Available |
| Usage | Laser System, Lighting system, industrial area. |
|
|
