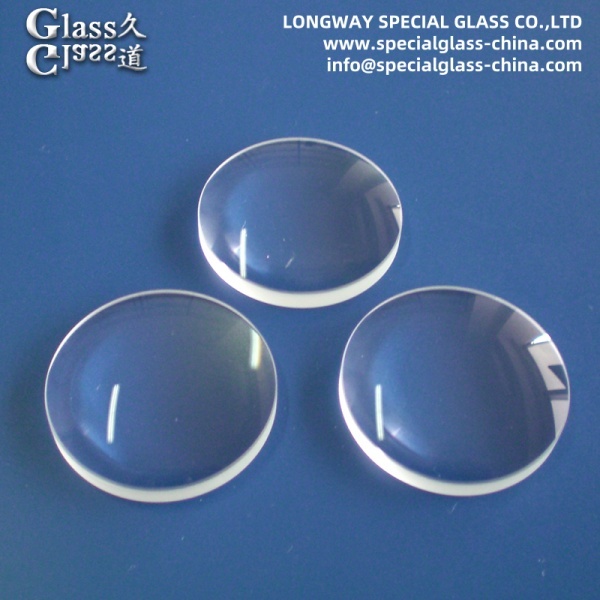

High Transmission AR Coating Optical Achromatic Doublet Convex Lens for Collimator

1. Glass Material

   • Achromatic Doublet Design: Combines two optical glasses (e.g., crown glass N-BK7 and flint glass N-SF11) to eliminate chromatic aberration.

   • High-Quality Optics: Schott or equivalent glass with low impurity levels, ensuring minimal scatter and high transmission (400–700 nm range).

   • Anti-Reflective (AR) Coating‌: Reduces surface reflections, enhancing light transmission and reducing glare.
   • ‌Achromatic Correction‌: Eliminates chromatic aberration, ensuring that images remain sharp and focused across a range of visible wavelengths.
   • ‌Doublet Design‌: Combines two lenses with different refractive indices to further correct aberrations and improve image quality.
   • ‌Convex Shape‌: Provides a wide field of view and good imaging performance.

2. Primary Functions

   • Color Accuracy: Delivers sharp, true-color images by minimizing wavelength-dependent focal shifts.

   • High-Efficiency Focusing: Convex design concentrates light for precise beam collimation or magnification.

   • Reflection Control: AR coating eliminates ghosting in multi-lens systems (e.g., cameras, telescopes).

3. Applications

   • Microscopy & Imaging: Critical in high-resolution microscopes, DSLR lenses, and telecentric systems.

   • Laser Systems: Collimators, beam expanders, and fiber-optic coupling in industrial/medical lasers.

   • Astronomy: Telescope objectives and eyepieces for clear celestial observation.

   • Machine Vision: Barcode scanners, metrology tools, and automated inspection systems.

   • Medical Devices: Endoscopes, OCT imaging, and ophthalmic diagnostics.

   • Defense & Aerospace: Targeting optics, rangefinders, and surveillance systems.

4. Advantages Over Singlet Lenses

   • Superior Color Fidelity: Achromatic design reduces axial/lateral chromatic aberration.

   • Enhanced Resolution: AR coating improves contrast for fine-detail imaging.

   • Multi-Wavelength Performance: Effective across UV, visible, and near-IR ranges with custom coatings

**Introduction**

Shanghai Longway Special Glass Co., Ltd. has been a professional supplier in the glass industry for over 20 years. With its expertise spanning across various fields, including optics, laser, imaging, and lighting etc., the company has established itself as a trusted partner for businesses worldwide. The company's commitment to providing high-quality glass products and services has earned it a reputation as a reliable supplier of choice among major corporations and small businesses alike.

**Our Team**

The team at Shanghai Longway Special Glass Co., Ltd. consists of professional experts with extensive experience in the field of glass manufacturing. These skilled technicians have honed their expertise through years of hands-on training and continuous education, ensuring that they remain up-to-date on the latest techniques and technologies.

**Our Capabilities**

Shanghai Longway Special Glass Co., Ltd.'s capabilities include:

* Cutting: Advanced cutting equipment allows for precise cuts in a variety of glass types.

* Grinding: High-speed grinding machines enable efficient surface preparation.

* Polishing: Automated polishing systems guarantee exceptional optical clarity.

* Molding: Sophisticated molding techniques permit the creation of intricate shapes and designs.

* Blowing: Expertise in blow-and-form processing enables the production of hollow glass products, such as bottles and jars.

* Tempering: Heat-treating equipment ensures that glass products meet or exceed industry standards for thermal shock resistance.

** Our Raw Materials**

The company offers a wide range of raw materials and processed glass products, normally including:

* Optical Glass: High-quality optical glass suitable for precision applications.

* Borosilicate Glass: Durable borosilicate glass ideal for laboratory equipment and medical devices.

* Quartz Glass: Pure quartz glass utilized in various industries, including electronics and optics.

* Float Glass: Large sheets of float glass suitable for architectural applications and flat glass products.

* Soda Lime Glass: Economical soda lime glass used for a wide range of industrial and commercial applications.

**Our Quality Control Process**

At Shanghai Longway Special Glass Co., Ltd., quality control is an integral part of the manufacturing process. Each product undergoes rigorous inspection to ensure that it meets or exceeds customer expectations. This commitment to excellence has earned the company a reputation as a trusted supplier of high-quality glass products.

**Our Commitment to Excellence**

At Shanghai Longway Special Glass Co., Ltd., we are committed to delivering exceptional quality glass products that meet or exceed customer expectations. Our team of professional experts is dedicated to providing expert advice and assistance in selecting the most suitable materials and processing techniques for specific needs. We take pride in our state-of-the-art facility, equipped with cutting-edge machinery and technology, ensuring that every product meets the highest standards.

**Why Choose Us?**

Shanghai Longway Special Glass Co., Ltd. is a trusted supplier of high-quality glass products, committed to delivering exceptional quality, innovation, and customer satisfaction. With over 20 years of experience and expertise spanning across various fields, we are well-positioned to meet the evolving needs of businesses worldwide. We look forward to serving your needs and meeting your expectations.
